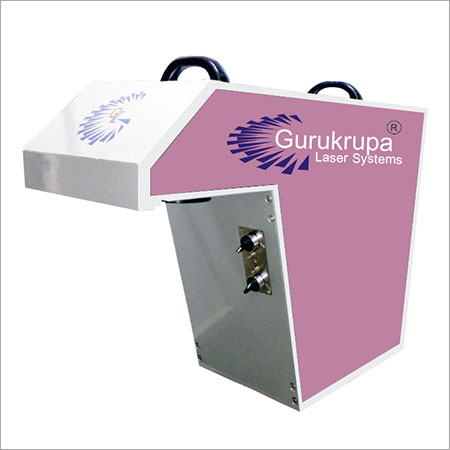

Marking machine Fiber

Marking machine Fiber

The fiber laser marking machine is the third generation laser marking machine developed by Gurukrupa Laser Tech with the most advanced technol-ogy in the world. It uses fiber laser to output laser and realizes marking function through high speed scanning galva-nometer system. The system features include efficiency, air cooling, compact size, high quality output beam, high reliability, long service life and energy saving. The marking speed is 3-12 times of the speed of first genera-tion lamp pump marking machine and second generation semiconduc-tor marking machine. The marking software runs on Windows OS platform. It is compatible with file formats of AUTOCAD, CORELDRAW and PHOTOSHOP, such as PLT, AI, DXF, BMP etc. It can also use SHX and TTF character libraries. The power of the Laser is controlled by software and is adjustable

Specification

The compactness of a Fiber Laser Marking Machine means that the machine is small in size and occupies less space. Many of its parts, such as the laser source, control system, and power supply, are built together in one unit. Because of this design, the machine is lightweight, easy to install, and simple to move from one place to another. Its compact structure makes it suitable for use in small workshops and industrial environments.

Due to the integration of a thermoelectric air cooling and the high efficiency of the system the running costs are reduced to a minimum. The medium power consumption of the laser marking system is 20 W.

An integrated diagnostic system minimizes down-time and helps to reduce additional services.

Fiber Laser Life Is 1,00,000Hrs.

Fast: The high-speed scanning head allows fast marking especially of small texts, with the highest positioning and  repeatability of the laser beam being guaranteed at any time.

Laser marking by engraving of metals, color change of
plastics, laser labeling; the machine is the right choice for the above mentioned and a lot more applications.

Laser marking for permanent, abrasion proof, chemical
resistant and falsification-safe marks, as well as a part of warranty,quality assurance, product liability and process control.

Laser unit :  Fiber Laser

Laser power :  10W & 20W

Beam quality :   TEMoo, M2 < 1,3

Pulse frequency :  1 – 100 kHz

Scanning speed :   50000 mm /sec

Focusing objective  :   optionalMarking field [mm]   70 x 70 / 100 x 100 / 200 x 200

Cooling Systems  :    Air Cooled

Humidity (relative) :  30 % - 85 %, non-condensing

Weight :  40 KG

Dimensions (mm)
